China Flap Barrier Turnstile with TTL232 Communication 4 Pairs Infrared and DC 24V Output for High Security Access Control wholesale

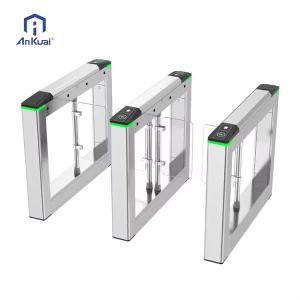

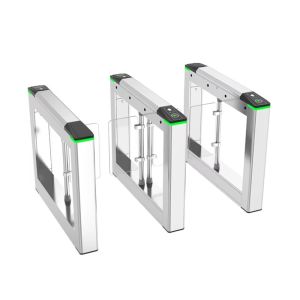

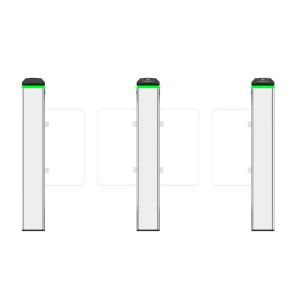

Flap Barrier Turnstile with TTL232 Communication 4 Pairs Infrared and DC 24V Output for High Security Access Control

Name: Flap Barrier Turnstile with TTL232 Communication 4 Pairs Infrared and DC 24V Output for High Security Access Control
Brand: Ankuai
Price: 341 USD

Ask Latest Price

Video Channel

Place of Origin :Guangdong, China

Brand Name :Ankuai

Model Number :AKT326

MOQ :2

Price :$341-380

Material :Stainless Steel

Reflective Grade :Engineer Grade

Diameter*Length :6mm×6m

Protection Rating :IP54

Water fillable :non-water fillable

Has Light :With Light

Machine box material :SUS304 stainless steel

Machine box size :1200*150*980mm

Power supply voltage :220V±10%/50Hz

Output voltage :DC 24V

Working current :5A (maximum 10A)

Drive motor :DC brushless motor DC24V 60W/60K 1800rpm

Communication interface :TTL232

Input interface :2 gate opening signals, 1 fire signal, 1 alarm signal

Infrared quantity :4 pairs of infrared input

Contact Now

Add to Cart

View Product Description

Please contact customer service before placing an order.

Flap Barrier Turnstile with TTL232 Communication 4 Pairs Infrared and DC 24V Output for High Security Access Control

Product Description

Specification

Place of Origin	Guangdong, China
Brand Name	Ankuai
Model Number	AKT321
Machine box material	SUS304 stainless steel
Machine box size	14001801020mm (length * width * height)
Power supply voltage	220V±10%/50Hz
Output voltage	DC 24V
Working current	5A (maximum 10A)
Drive motor	DC brushless motor DC24V 60W/60K 1800rpm
Communication interface	TTL232
Input interface	2 gate opening signals, 1 fire signal, 1 alarm signal
Infrared quantity	4 pairs of infrared input
Alarm output	1 alarm output / built-in buzzer alarm

FAQ

1. What is your company's strength in this field?

We are the one of the greatest head leader in this field. We are ISO approved factory, taking place of over 50,000 meters square region, with 130+ national patents. We have strong R&D team with 30+ professional R&D staff, and over 300 well-trained assembly workers. So far, we have 76 distributors and multiple sup companies in China, and more than 50 distributors all around the world.

2. How do you guarantee your quality of product / quality control?

We have ISO9001 and CE certificate among our products, all details can be found in our website. We commit to provide the best product quality possible to our customers.

3. Do you provide OEM service?

Yes, we can offer OEM services as follows:

1) We can customize barrier gate according to your needs.

2) We can print your logo on barrier gate, and customize retail box packing and other things
you need.

4. Lead time For standard item 1-50 sets:

5 working days; 50-100 sets: 7 working days,

100-500 sets: 15 working days,

For custom-made package or logo, 3-10 working days longer.

5. Do you provide quality guarantee/warranty and after sale service?

We have 1 year quality guarantee. Our well-trained and passionate sales and professional engineers can provide you with timely help.

6.What are your after-sale services?

1) For all your inquiries, response can be made within 24 hours.

2) Our company is equipped with excellent engineers and sales. We can provide you with first quality products and the best price.

3) Our experienced engineers can guide you about how to use our products. Call our after-sales team at any time.
